57mm 直流无刷电机
GLD57BL（S）DC SERIES
GLD 57 BL（S） 001
①：嘉蓝德 Garland ②:规格FRAME
③：无刷电机 BRUSHLESS MOTOR ④：编号 NO.
通用规格 General Specifications：
|
项目Item
|
规格 Specification
|
|
绕线类型 Winding type
|
星型连接 Delta
|
|
霍尔感应角度 Hall effect angle
|
120
degree electrical angle
|
|
转轴跳动 Shaft run Out
|
0.025mm
|
|
劲向间隙 Radial play
|
0.06mm@450g
|
|
轴向间隙 End play
|
0.08mm@450g
|
|
最大劲向负载 Max. radial force
|
75N
@ 20mmfrom the flange
|
|
最大轴向负载 Max. axial force
|
15N
|
|
绝缘等级 Insulation class
|
Class
B
|
|
介电强度 Dielectric strength
|
500VDC
for oneminute
|
|
绝缘电阻 Insulation resistance
|
100MΩ
Min.500VDC
|
电气连接 Electric Connection：
|
Lead No.
|
Lead Color
|
Lead Gauge
|
Funetion
|
DESCRIPTION
|
|
1
|
红 Red
|
UL1007/26AWGU
|
VCC
|
SUPPLY
VOLTAGE FOR HALL SENSORS
|
|
2
|
黑 Black
|
GND
|
GROUND
FOR HALL SENSORS
|
|
3
|
黄 Yellow
|
HALL A
|
|
|
4
|
白 White
|
HALL B
|
|
|
5
|
蓝 Blue
|
HALL C
|
|
|
6
|
橙Orange
|
UL1007/20AWG
|
PHSAE U
|
|
|
7
|
绿 Green
|
PHASE V
|
|
|
8
|
棕 Brown
|
PHASE W
|
|
电气性能Electrical Specification：
|
型 号Model
|
相数
No.of Phase
|
额定电压
RatedVoltage
|
每相电阻
Line to line resistance
|
反电势常数
Back E.M.F
|
额定转速
Rated Speed
|
重 量
Mass
|
机身长
Body length
|
额定功率Rated
Power
|
额定转矩
Rated Torque
|
|
|
|
VDC
|
Ohms
|
V/KRPM
|
rpm
|
Kg
|
mm
|
W
|
N.m
|
|
GLDBL(S)57-001
|
3
|
36
|
4.1
|
5.55
|
4000
|
0.35
|
42
|
23
|
0.055
|
|
GLDBL(S)57-002
|
3
|
12
|
1.0
|
3.0
|
2945
|
6
|
0.02
|
|
GLDBL(S)57-003
|
3
|
24
|
1.9
|
4.5
|
1600
|
0.5
|
52
|
31
|
0.188
|
|
GLDBL(S)57-004
|
3
|
36
|
1.05
|
3.35
|
6000
|
50
|
0.08
|
|
GLDBL(S)57-005
|
3
|
36
|
0.7
|
6.6
|
4000
|
0.75
|
72
|
92
|
0.22
|
|
GLDBL(S)57-006
|
3
|
36
|
0.45
|
6.6
|
4000
|
1.0
|
92
|
133
|
0.32
|
|
GLDBL(S)57-007
|
3
|
36
|
0.35
|
6.6
|
4000
|
1.25
|
112
|
180
|
0.43
|

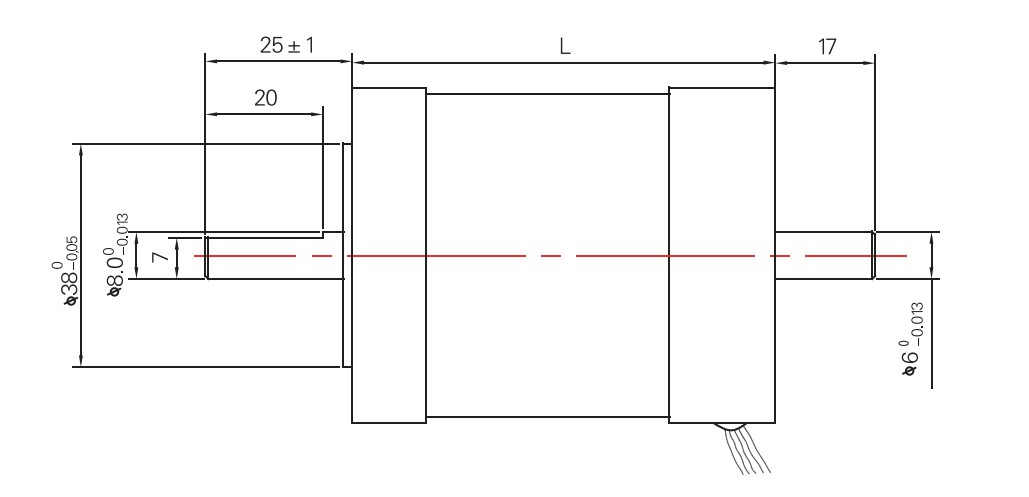

尺寸图：
|
