42 直流无刷电机
GLD42 BLDC SERIES
GLD 42 BL 001
①：嘉蓝德 Garland ②:规格FRAME
③：无刷电机 BRUSHLESS MOTOR ④：编号 NO.
通用规格 General Specifications：
|
项目Item
|
规格 Specification
|
|
绕线类型 Winding type
|
星型连接 Delta
|
|
霍尔感应角度 Hall effect angle
|
120
degree electrical angle
|
|
转轴跳动 Shaft run Out
|
0.025mm
|
|
劲向间隙 Radial play
|
0.06mm@450g
|
|
轴向间隙 End play
|
0.08mm@450g
|
|
最大劲向负载 Max. radial force
|
15N
@ 20mmfrom the flange
|
|
最大轴向负载 Max. axial force
|
10N
|
|
绝缘等级 Insulation class
|
Class
B
|
|
介电强度 Dielectric strength
|
500VDC
for oneminute
|
|
绝缘电阻 Insulation resistance
|
100MΩ
Min.500VDC
|
电气连接 Electric Connection：
|
Lead No.
|
Lead Color
|
Lead Gauge
|
Funetion
|
DESCRIPTION
|
|
1
|
红 Red
|
UL1007/26AWGU
|
VCC
|
SUPPLY VOLTAGE FOR HALL SENSORS
|
|
2
|
黑 Black
|
GND
|
GROUND FOR HALL SENSORS
|
|
3
|
蓝 Blue
|
HALL A
|
|
|
4
|
白 White
|
HALL B
|
|
|
5
|
黄 Yellow
|
HALL C
|
|
|
6
|
绿 Green
|
UL1007/20AWG
|
PHSAE A
|
|
|
7
|
橙Orange
|
PHASE B
|
|
|
8
|
棕 Brown
|
PHASE C
|
|
电气性能Electrical Specification：
|
型 号Model
|
相数
No.of Phase
|
额定电压
RatedVoltage
|
每相电阻
Line to line resistance
|
反电势常数
Back E.M.F
|
额定转速
Rated Speed
|
重 量
Mass
|
机身长
Body length
|
额定功率Rated
Power
|
额定转矩
Rated Torque
|
|
|
|
VDC
|
Ohms
|
V/KRPM
|
rpm
|
Kg
|
mm
|
W
|
N.m
|
|
GLDBLS42-001
|
3
|
24
|
1.5
|
3.66
|
4000
|
0.30
|
41
|
26
|
0.0625
|
|
GLDBLS42-002
|
3
|
24
|
0.8
|
3.0
|
4000
|
0.45
|
61
|
52.5
|
0.125
|
|
GLDBLS42-003
|
3
|
24
|
0.45
|
3.76
|
4000
|
0.65
|
81
|
77.5
|
0.185
|
|
GLDBLS42-004
|
3
|
24
|
0.28
|
3.94
|
4000
|
0.80
|
100
|
105
|
0.25
|

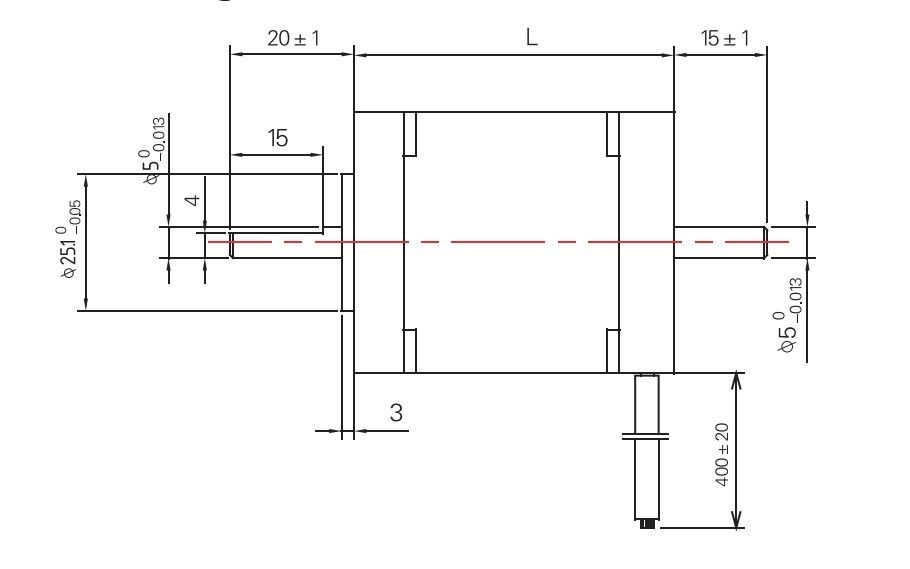

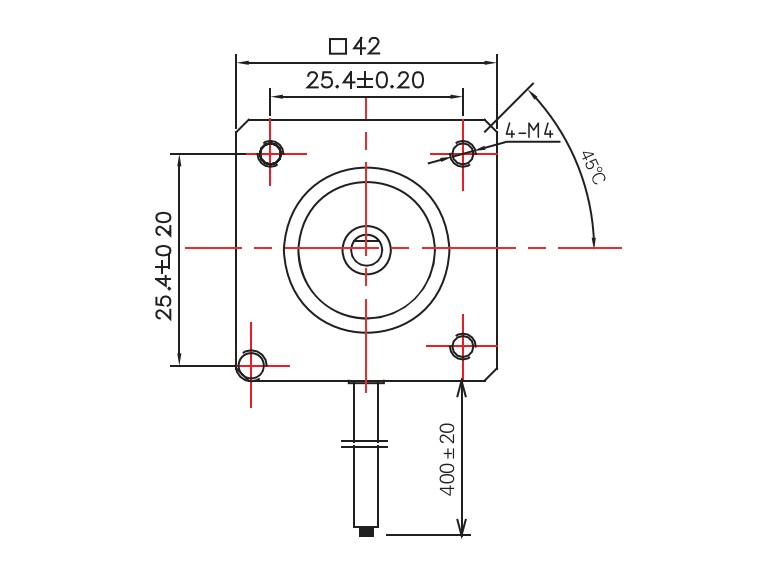

42mm 直流无刷电机外形尺寸图：
|
